Opti22 CT Module & Clamps – Solar Integration & Load Balancing Accessory
SV-EVACC-CT22-SEM3
$242
Add to cart GuideProduct Information
Overview
The OPTi 22kW CT Module and Clamps kit ensures accurate three-phase current monitoring for the OPTi 22kW EV Charger, enabling dynamic load balancing and solar integration.
By monitoring household consumption, it adjusts charger output to maximise solar use and prevent circuit overload. This compliant, reliable unit is essential for safe, high-performance charging. This helps ensure your EV charger operates safely without tripping the main circuit breaker.
Designed to meet Australian standards, the OPTi CT Module delivers safe, reliable, and efficient charging performance. It is the ideal solution for residential and light commercial installations requiring precise current measurement, intelligent solar charging, and dynamic load management.
Exclusively designed for the OPTI22 EV charger
Features
Accurate Current Monitoring: Provides precise current measurement and continuous tracking of a property's power consumption
Seamless Solar Integration: Delivers intelligent solar charging by automatically adjusting charger output to maximise the use of available solar energy
Dynamic Load Balancing: Automatically manages electrical loads for single-phase installations to keep operations safe
Overload Protection: Prevents the total electrical load from exceeding switchboard capacity, ensuring the main circuit breaker does not trip
Compliance & Reliability: Designed specifically to meet Australian standards for safe, reliable, and efficient charging performance
Versatile Installation: Ideal for both residential and light commercial applications requiring smart load management

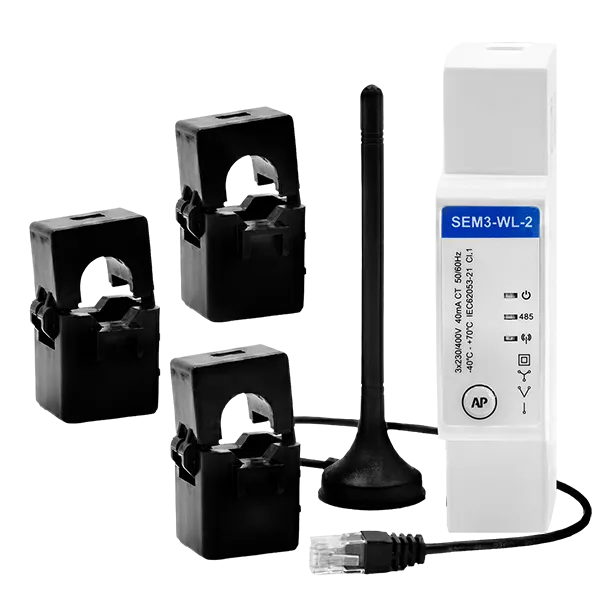

What's in the box?
1x CT Module 22kW
1x Clamp Three-Phase
1x Antenna
Tech Specs
Phase
Three
Nominal Voltage
400V AC L-L
Working Voltage Range
230V AC Line-to-Neutral
Frequency Range
50/60 Hz
Measurement Type
Current Transformer (CT) type
Current Accuracy Range
±0.5% accuracy from 4A to 120A | ±1% accuracy from 1A to 4A | ±3% accuracy from 0.06A to 1A
Mounting
Standard DIN rail mount
Terminal Design
Tool-less spring terminals or RJ terminals to reduce installation and maintenance overhead
Protocol & Data Type
Modbus RTU Protocol, Floating point data
Baud Rate
Adjustable from 2400 bps to 115200 bps
Address Range
1 to 247
Update Rate & Response
50ms active power updates with a response time <50ms
Protocol & Frequency
802.11 b/g/n on a 2.4 GHz to 2.5 GHz RF band
Update Rate
100ms active power updates
Wireless Range
Up to 30m indoors and 50m outdoors (subject to local building conditions)
Product Cover
This product is covered by a 3 Year limited warranty.
